LR1800-1.0

Wind turbine and blade installation

Load capacity over 100 tons:

HSL2AZDFBV 171m + 12m

181 m

HOOK HEIGHT

186 m

PULLEY HEAD HEIGHT

102.1 t

LIFTING CAPACITY

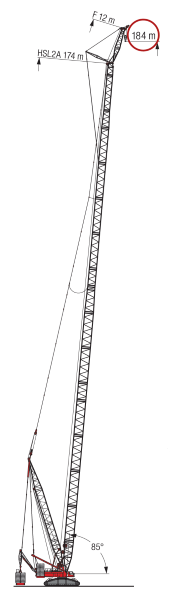

Blade installation at maximum hook height:

HSL2AZDFBV 171m + 21m

189 m

HOOK HEIGHT

194 m

PULLEY HEAD HEIGHT

79 t

LIFTING CAPACITY

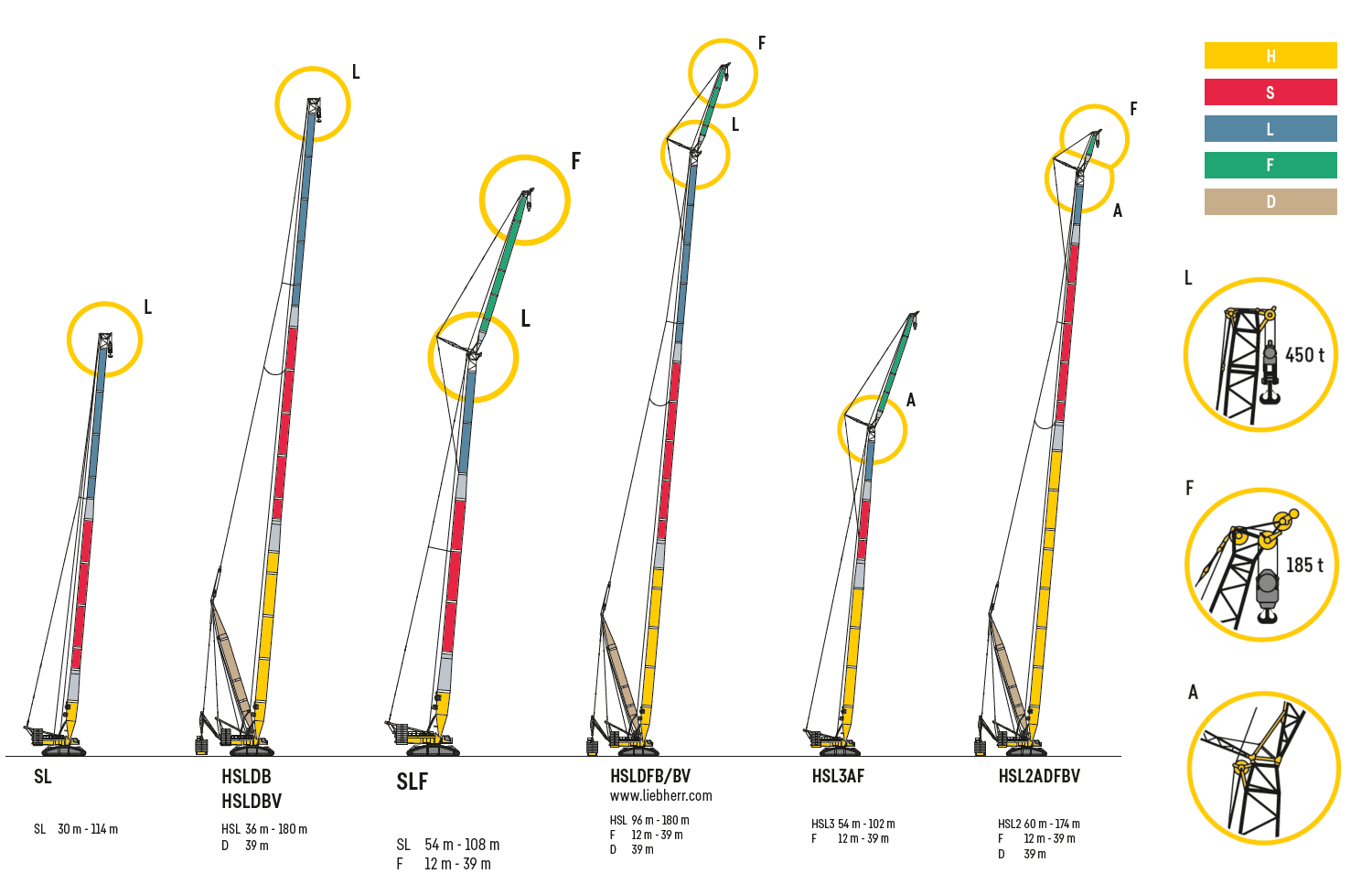

Configured specifically for the wind industry

What we are good at:

Onshore wind farm installation
Wind turbine maintenance
Blade repair and changeout
Wind farm decommissioning

We believe that the LR1800-1.0 is one of the best crawler cranes on the market with great capabilities in a lot of different sectors. Our main target was a specific build kit that is ideal for the wind industry, but can also be used to it's full potential in construction and chemical industries.

The LR1800-1.0 is equipped with the latest technologies developed by Liebherr, the industry leader in mobile and crawler cranes. Electronics, hydraulics and steel are combined to define the highest standards in mobility, manouverability and safety.

LR1800-1.0: Strong like a BULL, tall like a GIRAFFE!


189.0m	blades	79.0t
184.0m	175m	93.3t
181.2m	172m	102.1t
175.3m	165m	114.6t
169.3m	160m	127.6t
166.3m	155m	134.1t
160.4m	150m	149.3t
154.4m	145m	162.9t
151.4m	140m	170.5t

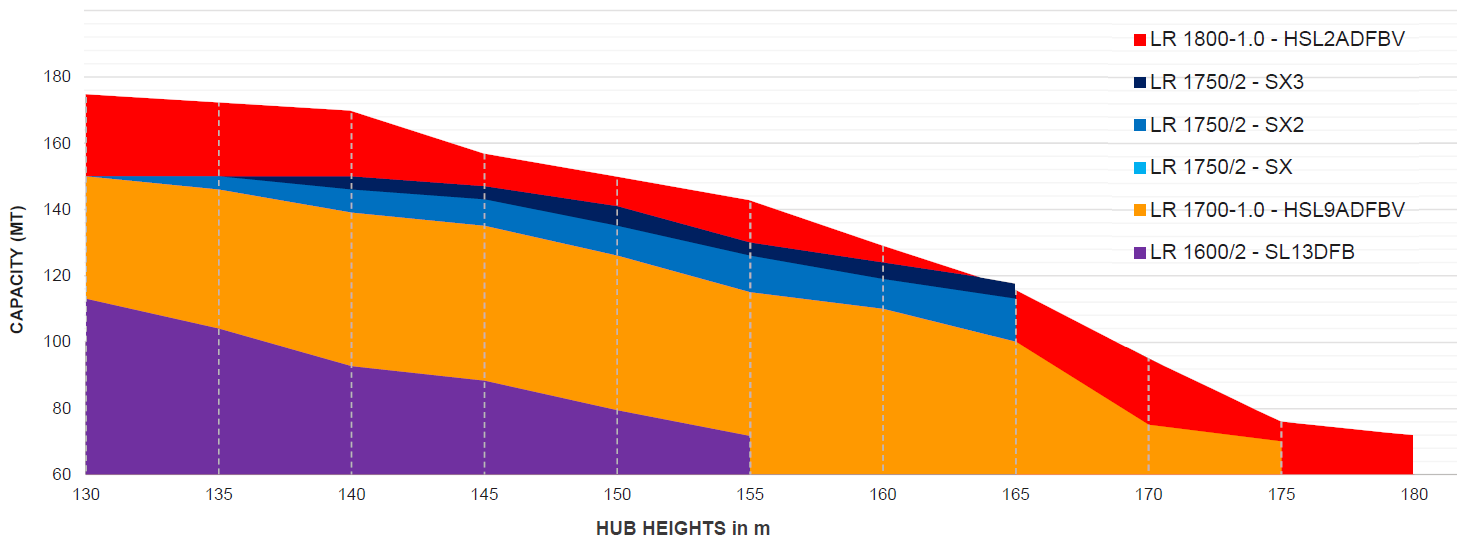

The most powerful crawler crane on the market even though the basic machine is just 3 metres wide !

Save your time and spare your wallet

Efficient
transport

The crane has undergone most advanced optimizations of transport dimensions and stackability.

Fast
installation

All crane connections are bolted quickly and safely using hydraulic cylinders.

Reduced
pressure

2.4 metres wide crawler pads reduce the required ground break pressure by 15%.

Higher
reach

Superb load capacities and higher hook heights are possible with the new HSL2 boom.

Features

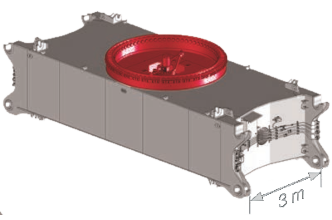

Quick connection

Only 3m wide central crawler section with quick connection for fast and safe superstructure installation.
2.4m crawler pads

Increased track pad width to 2,4m for reduced ground break pressure by 15%, therefore requiring less civil work for ground preparation.
V-Frame

Fully automated V-frame sets the derrick counterweight radius continuously from 14 to 23m for more versatile operation and higher load capacities.

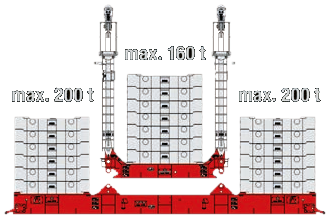

VarioTray

Detachable counterweight frame for fast derrick counterweight configuration directly on the jobsite.
No restacking, no adding or removing ballast - the detachable ballast system saves a massive amount of time.
Stackable boom

Three sizes of the HSL lattice boom components can be stacked together to reduce transport time and costs..
